What the induction range board and coil repair
involves.
Induction range board repair deals with the electronics that make an induction zone work. Each coil under the glass is driven by a power board that switches current at high frequency, and a filter board cleans up the supply before it gets there. Sensors under each coil report the pan and the glass temperature, and one or two fans move air across the boards. A board damaged by heat or a surge usually takes out one pair of zones at once; a fan clogged with grease lets the boards overheat and shut down mid-cook; a coil or sensor failure leaves a zone that no longer recognizes the pan. Codes from the touch panel point toward the part, and the repair confirms it by measurement before a board is ordered.
How the visit goesWhat it usually costsModerate to highest · Induction power board, coil or cooling fan
A cooling fan or a pan sensor stays in the middle. A power board, or a board and a coil together on a premium induction range, is one of the costliest repairs a range takes.
Answers 5 problemsInduction Range Not Detecting Pan
Range Surface Element Not Heating · Range Error Code · Range Control Panel Not Responding · Range Keeps Tripping the Breaker
Comes up most onInduction range
Induction board and coil repair,
step by step.
Run each zone at several power levels with a pan, confirming pan detection and steady power without cutting out.
Record any code, and test each zone with a pan known to work on induction.

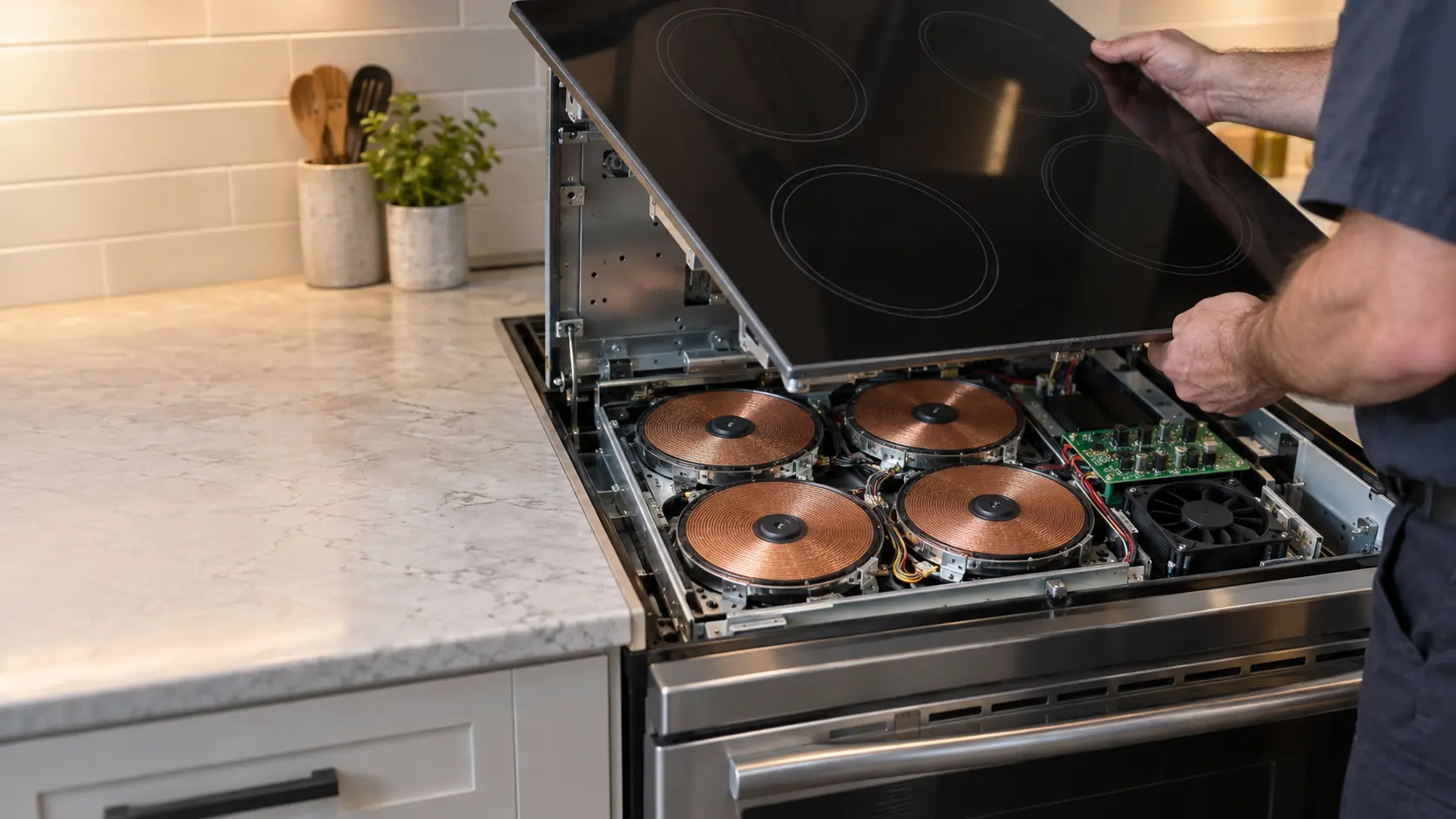

Switch the range off at the breaker, wait for the boards to discharge, then lift the glass top.
Inspect the coils, sensors, fans and boards for heat damage, grease and loose connectors, and measure each coil and board output.
Replace the failed coil, sensor, fan or board, reseat every connector and clean the air path.
Run each zone at several power levels with a pan, confirming pan detection and steady power without cutting out.
The problems
it answers.
5 of them, from induction range not detecting pan to range keeps tripping the breaker.
All problems
Induction Range Not Detecting Pan
6 causes, cheapest first
Before you call
Tell us this when you book
- The code on the display, exactly as shown
- Which zones fail and whether they fail together
- Whether the zone ignores the pan or starts and then cuts out
- Whether the problem started after a storm or power outage
It also answers
Moderate to highest,
on the site's scale.
A cooling fan or a pan sensor stays in the middle. A power board, or a board and a coil together on a premium induction range, is one of the costliest repairs a range takes.
Read the full cost guide| Repair | Relative cost |
|---|---|
| Gas burner igniter, spark switch or burner head | |
| Surface element, switch or glass top | |
| Bake or broil element | |
| Gas oven igniter, safety valve or burner | |
| Oven temperature sensor, thermostat or calibration | |
| Induction power board, coil or cooling fan | moderate to highest |
| Door hinges, gasket, glass or lock | |
| Knobs, keypad or control board | |
| Convection fan, blade or ring element |
Where it
comes up most.
Most bookings: Induction range.
All range typesOften the same visit
The makes
we see it on.
32 makes on this site, and the induction range board and coil repair on any of them. Each mark opens that make's own page.
All 32 brandsInduction board and coil repair,
where we come out.
The kitchen, the climate and the building all change how the induction range board and coil repair goes. These notes are about that, metro by metro.
All service areasTampa BayFL · 31 areas
Induction ranges are still a small share of Tampa Bay kitchens, and when a zone stops detecting a pan, the check covers the cookware, the coil and the power board, with any surge after a summer storm part of the history taken.
OrlandoFL · 30 areas
Newer Orlando houses and rentals sometimes come with an induction range, and guests who bring pans that are not magnetic make a missing pan signal a frequent call, so the visit rules that out with a known-good pan before any board is tested.
Miami / South FloridaFL · 47 areas
Induction ranges turn up in new and renovated Miami towers, and their power boards depend on cooling air, so a zone that shuts down mid-sear is checked for a blocked fan intake as well as for board damage.
New York MetroNY · 75 areas
New York's newest all-electric buildings are bringing induction ranges into kitchens that once knew only gas, and a repair there traces an error through the coil, the power board and the cooling fan with the range still in its slot.
HoustonTX · 36 areas
Houston's induction ranges are mostly in recent remodels, and after a storm-season outage or surge, a range that shows an error on every zone is tested at the power board and its fuses before the coils are suspected.
ChicagoIL · 50 areas
Chicagoland remodels that chose induction often did so in houses with older wiring, and a range that trips its breaker or cuts back at high power may be reporting on the circuit, which is measured before the board is condemned.
Los AngelesCA · 95 areas
Kitchens rebuilt in Los Angeles in recent years increasingly choose induction, and a zone that buzzes loudly or never reaches full power is tested at the coil and the board, with the cookware ruled out first.
San DiegoCA · 31 areas
Induction ranges near the San Diego coast carry their electronics just under the glass, where damp salt air can reach the board's connectors, so a zone that drops out now and then gets those connections inspected and cleaned.
San Francisco Bay AreaCA · 74 areas
The Bay Area's move toward all-electric kitchens has put induction ranges into many remodels, and a repair there works through pan detection, coil connections, the power boards and the cooling fan that keeps them alive.
Questions about
the induction range board and coil repair.
Two zones on the same side of my induction range stopped together. Why?
Is it worth repairing the boards on an induction range?
Can a surge damage an induction range?
